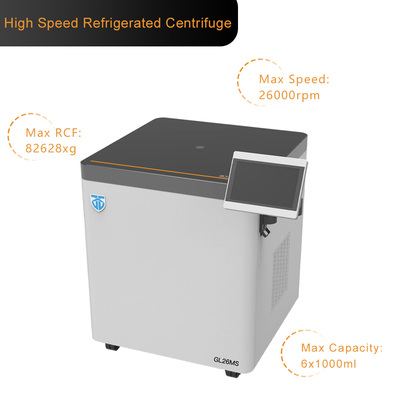

GL26MS High Speed Refrigerated Centrifuge

GL26MS High Speed Refrigerated Centrifuge

Type: Floor Stand Centrifuge
Model: GL26MS
Max. Speed: 26000 rpm
Max. RCF: 82628 xg
Max. Capacity: 6 x 1000 ml
Description
Machine Parameters
Rotor List


GL26MS High Speed Refrigerated Centrifuge is widely used in various fields such as biopharmaceuticals, biotechnology, pharmaceuticals, food hygiene, agriculture, etc. It is suitable for high-speed and high-capacity separation and purification of biological samples such as micro organisms, proteins, cells, DNA, etc., meeting the various separation needs from customers.


Features:


1. Max. speed 26000rpm, max.RCF 82628xg, max. capacity 6L

2. Intelligent vacuum system and effective sealing structure

3. Red, Green, and Yellow indicator lights allow for real-time monitoring of device operation status

4. High strength aluminum alloy centrifugal chamber

5. All rotors can maintain 4℃ or below at their maximum speed

6. Standby cooling function can be turned off, greatly reducing the energy consumption and saving energy over 45%

7. Automatic rotor ID recognition to avoid misoperation

8. Airtight rotor and simple rotor placement

9. Multiple languages available, default English

10. Able to make brief description for each program in customized mode


Model

GL26MS

Order No.

102260

Max.   Speed

26000   rpm

Max.   RCF

82628   xg

Max.   Capacity

6 x 1000ml

Speed Range

300 - 26000rpm

Speed   Accuracy

±5 rpm

Temperature   Range

-20℃   ~   +40℃

Temperature   Accuracy

±1 ℃

Timer

1s ~ 65535s   / 1min ~ 65535min, increasement 1

ACC/DEC   Rate

11 / 11   Soft brake

Storage

1000   pcs

Screen

10-inch   color LCD touch screen

Storage   Interface

USB

Noise   Level

≤56 dB   (A)

Safety Devices

Door   interlock, overspeed detection, imbalance detection,

over-temperature   detection

Drive   Motor

AC Inverter Motor

Refrigerator

Inverter compressor   (Refrigerant: R290)

Power Supply

AC 220V   ±10%, 50Hz, 20A

Total Power

4 kW

Dimensions

810 x 780   x 910 mm (L x W x H)

Net   Weight

300 kg

Auto Rotor   Recognition

Applied

Log   Management

Optional

Real   Time Control(RTC)

Optional

Gradient   Centrifugation

Optional

Administrator   Management

Optional



GL26MS Rotor List :


No.

Name

Order No.

Capacity

Max Speed

(rpm)

Max. RCF

(x g)

Adapters

No.1

Angle Rotor

(Ti)

60124001

24 x 1.5ml

26000

62728

0.2ml, 0.5ml

No.2

Angle Rotor

60224002

24 x 1.5ml

25000

57996

0.2ml, 0.5ml

No.3

Angle Rotor

60348001

48 x 1.5ml

23000

57959

0.2ml, 0.5ml

No.4

Angle Rotor

60512001

12 x 15ml conical

24000

69549

5ml falcon

No.5

Angle Rotor

60606001

6 x 50ml conical

24000

65041

15ml falcon

No.6

Angle Rotor

(Ti)

60708001

8 x 50ml

26000

82628

5ml, 10ml, 15ml

No.7

Angle Rotor

60806001

6 x 200ml conical

16500

41090

10ml, 15ml,

50ml conical

No.8

Angle Rotor

60906002

6 x 500ml

10000

18111

15ml, 50ml, 200ml

No.9

Angle Rotor

61104001

4 x 1000ml

8500

14701

50ml, 250ml, 500ml

No.10

Angle Rotor

61206001

6 x 1000ml

7000

11000

50ml, 250ml, 500ml

No.11

Swing Rotor

61504001

4 x 500ml

4000

3255

10ml, 15ml,

vacutainer 2ml, 5ml

No.12

Swing Rotor

61604001

4 x 750ml

4500

4166

10ml, 15ml,

vacutainer 2ml, 5ml
