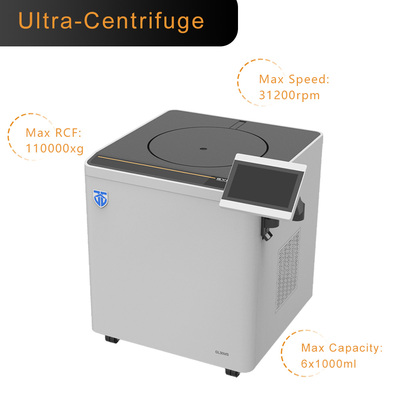

GL30MS Ultra High Speed Refrigerated Centrifuge

GL30MS Ultra High Speed Refrigerated Centrifuge

Type: Ultra High Speed Centrifuge
Model: GL30MS
Max. Speed: 31200 rpm
Max. RCF: 110000 xg
Max. Capacity: 6 x 1000 ml
Description
Machine Parameters
Rotor List



GL30MS is the first floor stand ultra high speed refrigerated centrifuge in China, fully independently developed and manufactured, mastering all core technologies, and has obtained multiple patents for inventions, utility models, and other patents.

It is widely used for high-speed and high-capacity separation and purification of

biological samples such as molecular biology, proteins, cells, DNA, as well as ultraspeed centrifugal separation of nanoscale samples, to meet the diverse separation needs of customers.


Features:


1. Max speed 31200rpm,maxRCF 110000xg, max capacity 6L

2. Intelligent vacuum system and effective sealing structure

3. Red, Green, and Yellow indicator lights allow for real-time monitoring of device operation status

4. High strength aluminum alloy centrifugal chamber

5. All rotors can maintain 4℃ or below at their maximum speed

6. Standby cooling function can be turned off, greatly reducing the energy consumption and saving energy over 45%

7. Automatic rotor ID recognition to avoid misoperation

8. Air tight rotor and simple rotor placement

9. Multiple languages available, default English

10. Able to make brief description for each program in customized mode






Model

GL30MS

Order No.

101312

Max. Speed

31200 rpm

Max. RCF

110000 xg

Max.   Capacity

6 x 1000ml

Speed Range

300 - 31200rpm

Speed Accuracy

±5 rpm

Temperature Range

-20℃   ~   +40℃

Temperature Accuracy

±1 ℃

Timer

1s ~ 65535s   / 1min ~ 65535min, increasement 1

ACC/DEC Rate

11 / 11   Soft brake

Storage

1000 pcs

Screen

10-inch color LCD touch screen

Storage Interface

USB

Noise Level

≤56 dB (A)

Safety Devices

Door interlock, overspeed detection, imbalance detection,

over-temperature detection, rotor cover detection

Drive Motor

AC Inverter Motor

Refrigerator

Inverter compressor (Refrigerant: R290)

Power Supply

AC 220V   ±10%, 50Hz, 20A

Total Power

4 kW

Dimensions

810 x 780 x 870 mm (L x W x H)

Net Weight

308 kg

Auto Rotor Recognition

Applied

Log Management

Optional

Real Time Control(RTC)

Optional

Gradient Centrifugation

Optional

Administrator Management

Optional




GL30MS Rotor List:


No.

Name

Order No.

Capacity

Max Speed

(rpm)

Max. RCF

(x g)

Adapters

No.1

Angle Rotor (Ti)

60124001

24 x 1.5ml

31200

90329

0.2ml, 0.5ml

No.2

Angle Rotor

60224002

24 x 1.5ml

25000

57996

0.2ml, 0.5ml

No.3

Angle Rotor

60348001

48 x 1.5ml

24000

63109

0.2ml, 0.5ml

No.4

Angle Rotor

60512001

12 x 15ml conical

25000

75465

5ml falcon

No.5

Angle Rotor

60606001

6 x 50ml conical

25000

70574

15ml falcon

No.6

Angle Rotor (Ti)

60708001

8 x 50ml

30000

110000

5ml, 10ml, 15ml

No.7

Angle Rotor

60806001

6 x 200ml conical

17000

43618

10ml, 15ml,

50ml conical

No.8

Angle Rotor

60906002

6 x 500ml

10000

18111

15ml, 50ml, 200ml

No.9

Angle Rotor

61104001

4 x 1000ml

9000

16481

50ml, 250ml, 500ml

No.10

Angle Rotor

61206001

6 x 1000ml

8000

14367

50ml, 250ml, 500ml

No.11

Swing Rotor

61504001

4 x 500ml

4000

3255

10ml, 15ml,

vacutainer 2ml, 5ml

No.12

Swing Rotor

61604001

4 x 750ml

4500

4166

10ml, 15ml,

vacutainer 2ml, 5ml
