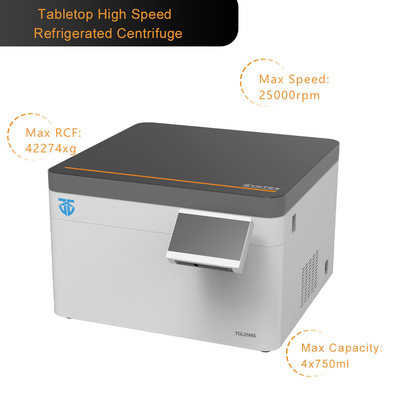

TGL25MS Tabletop High Speed Refrigerated Centrifuge

TGL25MS Tabletop High Speed Refrigerated Centrifuge

Type: High Speed Centrifuge
Model: TGL25MS
Max. Speed: 25000 rpm
Max. RCF: 42274 xg
Max. Capacity: 4 x 750ml
Description
Machine Parameters
Rotor List


TGL25MS Tabletop High Speed Refrigerated Centrifuge is widely used in the separation and purification of biological samples and blood products such as molecular biology, proteins, cells, DNA, etc. It is an ideal centrifugation instrument for hospitals, research facilities, and education institutions at all levels.


Features:


1. Max speed 25000rpm,max3L samples can be separated at once

2. AC inverter motor,microcomputer control

3. High strength aluminumcentrifugal chamber

4. Standby cooling function can be turned off, saving energy

5. All rotors can maintain 4℃ or below at their maximum speed

6. Automatic rotor recognition to avoid misoperation

7. Multiplerotor options for various application needs

8. Airtight rotor, simple rotor placement and self-locking system

9. Multiple languages available, defaultEnglish

10. Able to make simple editing for each program in customized mode


Model

TGL25MS

Order No.

116250

Max. Speed

25000 rpm

Max. RCF

42274 xg

Max. Capacity

4 x 750ml

Speed Range

300 - 25000rpm

Speed Accuracy

±10 rpm

Temperature Range

-20℃   ~   +40℃

Temperature Accuracy

±1 ℃

Timer

1s ~ 65535s,   increasement 1

ACC/DEC Rate

11 / 11   Soft brake

Storage

1000 pcs

Screen

7-inch   color LCD touch screen

Storage Interface

USB

Noise Level

≤62 dB (A)

Safety devices

Door   interlock, overspeed detection, imbalance detection,

over-temperature   detection

Drive Motor

AC Inverter Motor

Refrigerator

Inverter compressor   (Refrigerant: R290)

Power Supply

AC 220V   ±10%, 50Hz, 10A

Total Power

2.5 kW

Dimensions

850 x 720   x 490 mm (L x W x H)

Net Weight

160 kg

Auto rotor recognition

Applied

Log Management

Optional

Real Time Control(RTC)

Optional

Gradient Centrifugation

Optional

Administrator Management

Optional



TGL25MS Rotor List :


No.

Name

Order No.

Capacity

Max Speed

(rpm)

Max. RCF

(x g)

Adapters

No.1

Angle Rotor

70112001

12 x 1.5ml

25000

42274

0.2ml, 0.5ml

No.2

Angle Rotor

70224001

24 x 1.5ml

19000

33498

0.2ml, 0.5ml

No.3

Angle Rotor

70448001

48 x 1.5ml

17000

31664

0.2ml, 0.5ml

No.4

Angle Rotor

71012001

12 x 15ml conical

14500

25386

5ml falcon

No.5

Angle Rotor

71106001

6 x 50ml conical

14000

22132

15ml falcon

No.6

Angle Rotor

71706001

6 x 200ml conical

9000

12225

10ml,15ml,

50ml conical

No.7

Swing Rotor

73604001

4 x 250ml

4200

3451

10ml, 15ml,

vacutainer 2ml, 5ml

No.8

Swing Rotor

73704001

4 x 500ml

4000

3255

10ml, 15ml,

vacutainer 2ml, 5ml

No.9

Swing Rotor

73804001

4 x 750ml

4000

3500

10ml, 15ml,

vacutainer 2ml, 5ml
