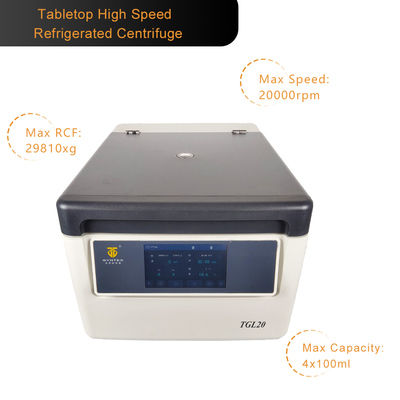

TGL20 Tabletop High Speed Refrigerated Centrifuge

TGL20 Tabletop High Speed Refrigerated Centrifuge

Type: Refrigerated Centrifuge
Model: TGL20
Max. Speed: 20000 rpm
Max. RCF: 29810 xg
Max. Capacity: 4 x 100 ml
Description
Machine Parameters
Rotor List


TGL20 Tabletop High Speed Refrigerated Centrifuge is widely used in the separation and purification of biological samples and blood products such as molecular biology, proteins, cells, DNA, etc. It is an ideal centrifugation instrument for hospitals,research facilities, and education institutions at all levels.


Features:


1. Max speed 20000rpm,maximum 400ml samples can be separated at once

2. DC brushlessmotor, microcomputer control

3. High strength stainless steel centrifugal chamber

4. Standby cooling function can be turned off, saving energy

5. All rotors canmaintain 4℃ or below at their maximum speed

6. *Automaticrotor recognition to avoid misoperation

7. Multiple rotor options for various application needs

8. Airtight rotor, simple rotor placement and self-locking system

9. Multiple languages available, default English

10. Able to make simpleediting for each program in customized mode


Model

TGL20

Order No.

117200

Max. Speed

20000 rpm

Max. RCF

29810 xg

Max. Capacity

4 x 100ml

Speed Range

300 - 20000rpm

Speed   Accuracy

±10 rpm

Temperature Range

-20℃   ~   +40℃

Temperature Accuracy

±1 ℃

Timer

1min ~   99h59min / 1s ~ 99min59s, increasement 1

ACC/DEC Rate

9 / 9   Soft brake

Storage

100 pcs

Screen

7-inch color LCD touch screen

Noise Level

≤62 dB (A)

Safety Devices

Door interlock, overspeed detection,

imbalance detection, over-temperature detection

Drive Motor

DC Brushless Motor

Refrigerator

High performance compressor (Refrigerant: R134A)

Power Supply

AC 220V   ±10%, 50Hz, 10A

Total Power

900 W

Dimensions

650 x 460 x 370 mm (L x W x H)

Net Weight

60 kg

Auto rotor recognition

Optional

USB Interface

Optional



TGL20 Rotor List :


No.

Name

Order No.

Capacity

Max Speed

(rpm)

Max. RCF

(x g)

Adapters

No.1

Angle Rotor

70112001

12 x 1.5ml

20000

27055

0.2ml, 0.5ml

No.2

Angle Rotor

70224001

24 x 1.5ml

17500

28418

0.2ml, 0.5ml

No.3

Angle Rotor

70448001

48 x 1.5ml

13000

18516

0.2ml, 0.5ml

No.4

Angle Rotor

70612001

12 x 5ml

20000

29810

2ml

No.5

Angle Rotor

70812001

12 x 10ml

16000

22945

5ml

No.6

Angle Rotor

70908001

8 x 15ml

12000

16582

5ml

No.7

Angle Rotor

71012001

12 x 15ml conical

12500

18866

5ml conical

No.8

Angle Rotor

71106001

6 x 50ml conical

12000

16260

15ml conical

No.9

Angle Rotor

71206001

6 x 50ml

14000

20805

5ml,10ml,15ml

No.10

Angle Rotor

71604001

4 x 100ml

10000

11599

5ml, 10ml, 15ml, 50ml

No.11

Swing Rotor

73504001

4 x 100ml

4500

3056

15ml, 50ml, 4x3x10ml,

vacutainer 2ml,5ml
