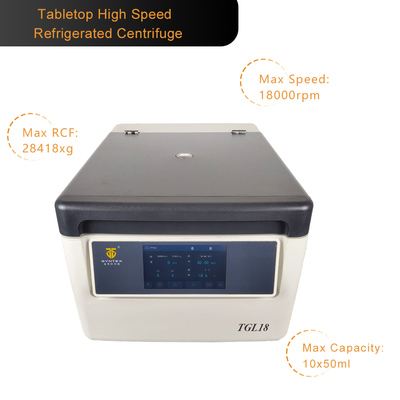

TGL18 Tabletop High Speed Refrigerated Centrifuge

TGL18 Tabletop High Speed Refrigerated Centrifuge

Type: Refrigerated Centrifuge
Model: TGL18
Max. Speed: 18000 rpm
Max. RCF: 28418 xg
Max. Capacity: 500 ml
Description
Machine Parameters
Rotor List


TGL18 TabletopHigh Speed Refrigerated Centrifuge is widely used in the separation and purification of biological samples and blood products such as molecularbiology, proteins, cells, DNA, etc. It is an ideal centrifugation instrument for hospitals, research facilities, and education institutions at all levels.


Features:


1. Max speed 18000rpm,maximum 500ml samples can be separated at once

2. DC brushlessmotor, microcomputer control

3. High strength stainless steel centrifugal chamber

4. Standby cooling function can be turned off, saving energy

5. All rotors canmaintain 4℃ or below at their maximum speed

6. *Automaticrotor recognition to avoid misoperation

7. Multiple rotor options for various application needs

8. Airtight rotor, simple rotor placement and self-locking system

9. Multiple languages available, default English

10. Able to make simple editing for each program in customized mode


Model

TGL18

Order No.

118180

Max. Speed

18000 rpm

Max. RCF

28418 xg

Max. Capacity

10 x 50ml

Speed Range

300 - 18000rpm

Speed Accuracy

±10 rpm

Temperature Range

-20℃   ~   +40℃

Temperature   Accuracy

±1 ℃

Timer

1min ~   99h59min / 1s ~ 99min59s, increasement 1

ACC/DEC Rate

9 / 9 Soft brake

Storage

100 pcs

Screen

7-inch color LCD touch screen

Noise Level

≤62 dB (A)

Safety Devices

Door interlock, overspeed detection,

imbalance detection, over-temperature detection

Drive Motor

DC Brushless Motor

Refrigerator

High performance compressor (Refrigerant: R134A)

Power Supply

AC 220V ±10%, 50Hz, 10A

Total Power

900 W

Dimensions

650 x 460 x 370 mm (L x W x H)

Net Weight

55 kg

Auto rotor recognition

Optional

USB Interface

Optional



TGL18 Rotor List :


No.

Name

Order No.

Capacity

Max Speed

(rpm)

Max. RCF

(x g)

Adapters

No.1

Angle Rotor

70112001

12 x 1.5ml

18000

21915

0.2ml, 0.5ml

No.2

Angle Rotor

70224001

24 x 1.5ml

17500

28418

0.2ml, 0.5ml

No.3

Angle Rotor

70448001

48 x 1.5ml

13000

18516

0.2ml, 0.5ml

No.4

Angle Rotor

70812001

12 x 10ml

16000

22945

5ml

No.5

Angle Rotor

70908001

8 x 15ml

12000

16582

5ml

No.6

Angle Rotor

71012001

12 x 15ml conical

12500

18866

5ml conical

No.7

Angle Rotor

71106001

6 x 50ml conical

12000

16260

15ml conical

No.8

Angle Rotor

71206001

6 x 50ml

13000

17950

5ml, 10ml, 15ml

No.9

Angle Rotor

71308001

8 x 50ml

11000

14745

5ml, 10ml, 15ml

No.10

Angle Rotor

71410001

10 x 50ml conical

10000

14265

5ml, 10ml, 15ml

No.11

Angle Rotor

71510001

10 x 50ml

10000

12991

5ml, 10ml, 15ml

No.12

Angle Rotor

71604001

4 x 100ml

10000

11599

5ml, 10ml, 15ml, 50ml

No.13

Swing Rotor

73504001

4 x 100ml

4500

3056

15ml, 50ml, 4x3x10ml,

vacutainer 2ml,5ml
